Newline Sliding Shelf

Original price was: $59.95.Current price is: $17.98.

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

Width

Depth

22 People watching this product now!

Description
Additional information

Description

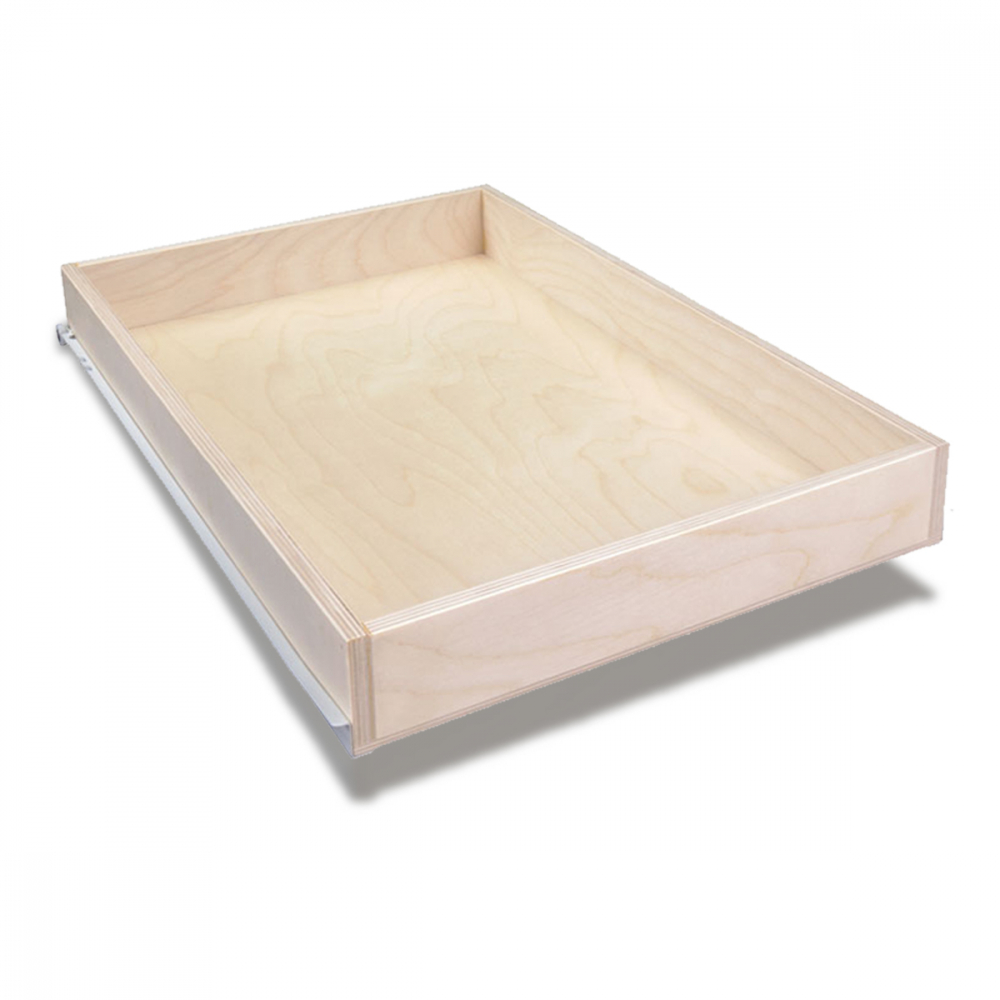

Less expensive than the premium shelves with the same great 9 ply Birch sides. No lacquer or joinery. We use the same 3/4 extension hardware as our Premium shelves. 9 ply Baltic Birch for the front, back, and sides of our new line pull out shelves. The maximum width for our NewLine shelves is for a 26″ opening.

What’s Included:

  ?   Custom Pullout Shelf

  ?   Complete set of the selected Slides

  ?   Mounting Hardware for the selected Mounting Style

  ?   1 or 2 Door Protectors per shelf (under 19″ wide gets 1)

  ?   10 Wood Mounting Screws per shelf (5/8″ long)

Clear Opening Width

The available space between the most narrow 2 points of your cabinet’s opening, at the level the shelf will be installed. Between any protruding hinges, doors, face frames, etc.
It is typical for the lower pullout shelf to be slightly narrow that the upper, due to the hinges usually only interfering with the bottom. If you have a Frameless Cabinet,
you may need to deduct for the L Brackets used by the Base or Half Shelf Mounting Styles.

Do not measure existing pullout shelves or drawers to obtain the Clear Opening Width

Shelf Depth

Select the Shelf Depth that would fit inside of your available cabinet interior depth, behind any doors or framing. This is the actual length of the pullout shelf. The Rear Socket Mounting Style
may add 1/4″ more to the Shelf Depth selection, so please allow for 1/4″ Extra room when ordering to be safe.

Do not select the Depth size larger than your interior cabinet depth.

Mounting Styles

Base Mount	Mounting on top of any existing surface, i.e. Bottom/Floor of cabinet, Full Fixed/Adjustable Shelf.
Half Shelf Mount	Utilizing the pesky Half Shelf in the back of the cabinet, or an existing shelf that’s more than 2″ shorter than the cabinet depth.
Side Mount	For mounting an upper shelf with no existing fixed/adjustable shelf. Would attach to the interior sidewalls using a form of Spacer or Wood Strip so the pullout can be narrow enough to slide through the opening.
Rear Socket Mount	Similar to the Side Mount, only the Rear of the shelf will be attached to the cabinet’s back wall.
The Half Shelf, Side Mount, and Rear Sockets Mounting Styles all attach to the Face Frame or Sides of the cabinet on the front, the rear attachment is all that changes.

We do not automatically include spacers. They can be found in our Hardware Section

You can find more information on our different Mounting Styles HERE.

[FX] Slides in limited supply

Your shelf is custom made to order in the USA usually ships in under a week

FREE U.S. Shipping Custom Shelf Orders Over $750 *
Excludes HI & AK

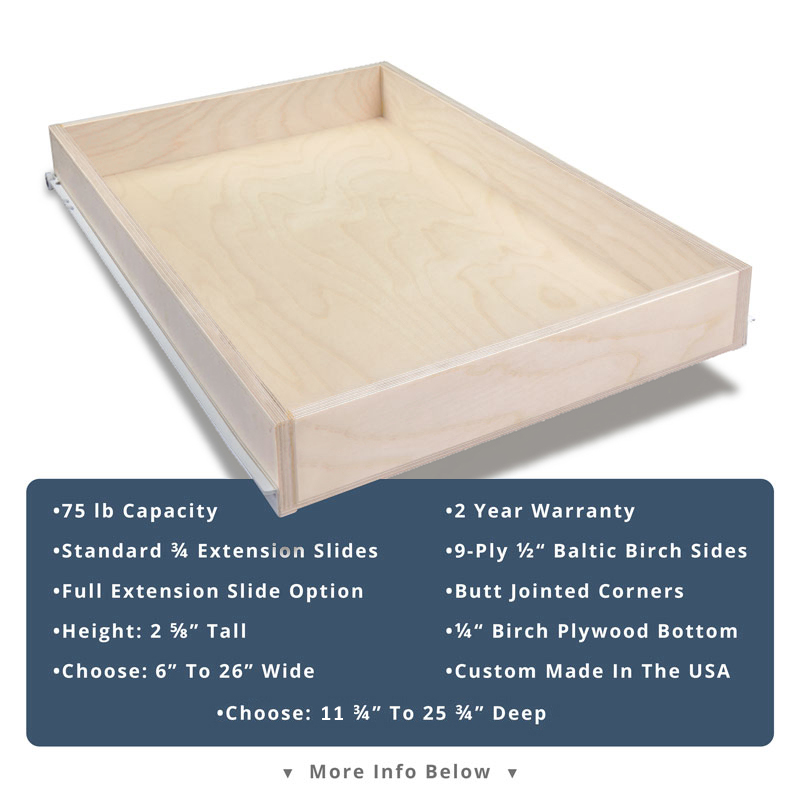

Specifications
Height	2 5/8″
Depth	From 11 3/4″ to 25 3/4″ (2″ increments)
Capacity	75 lbs.
Wood	1/2″ 9-Ply Birch sides / 1/4″ Birch bottom
Finish	No Lacquer
Joints	Butt Joint corners/bottom
Warranty	2 Years
