In-House 3D Printed Face Frame Spacers.

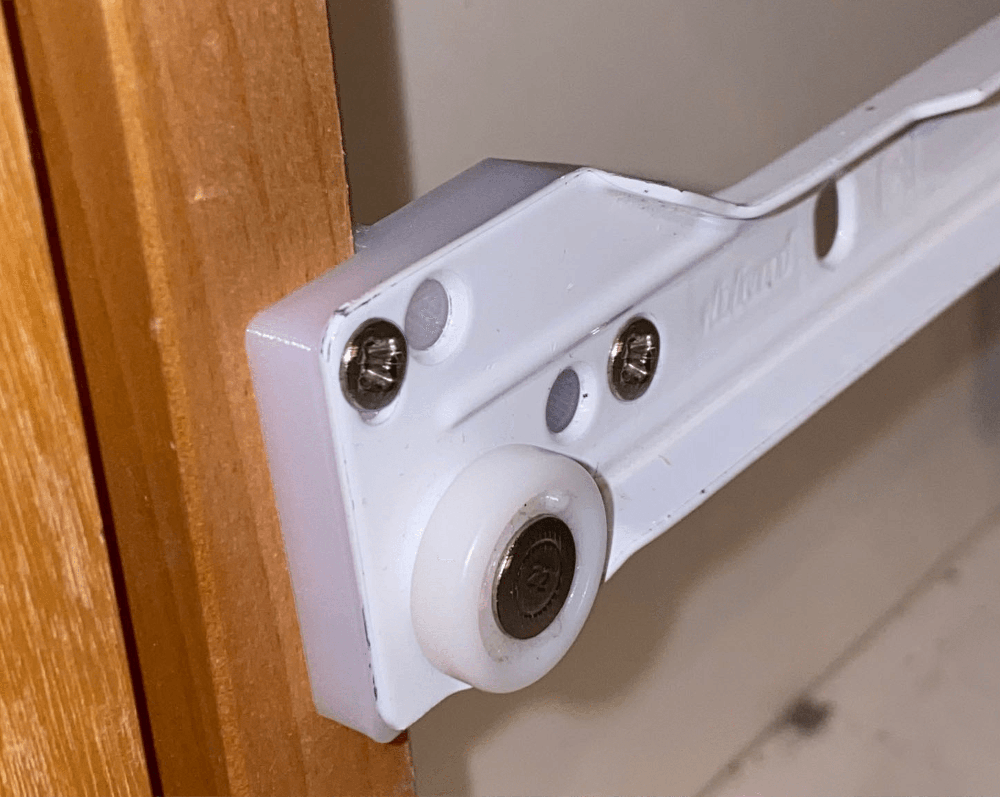

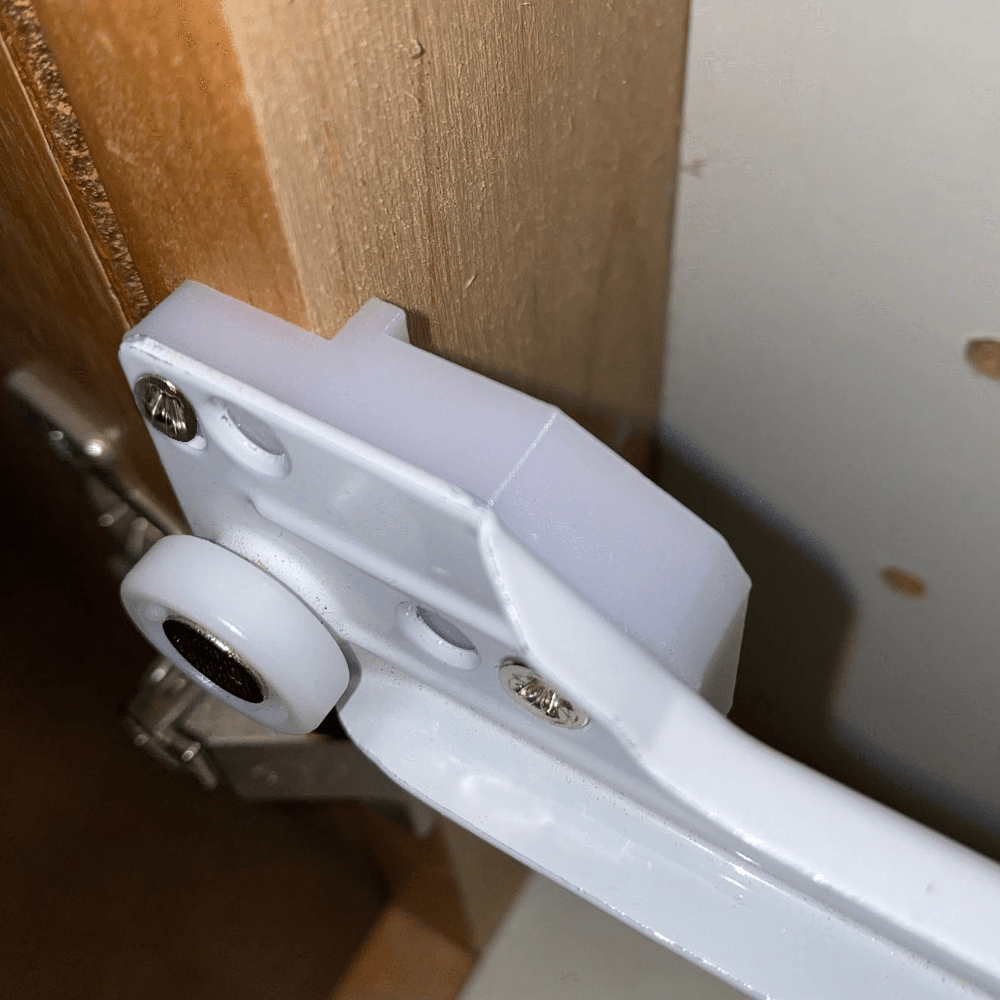

These spacers provide a more sturdy attachment for Side, Rear and Half Shelf Mounting on the front of the slide when attaching
to the cabinet’s Face Frame.
Sizes are available in 1/16″ increments from 1/8″ to 3/4″ wide.

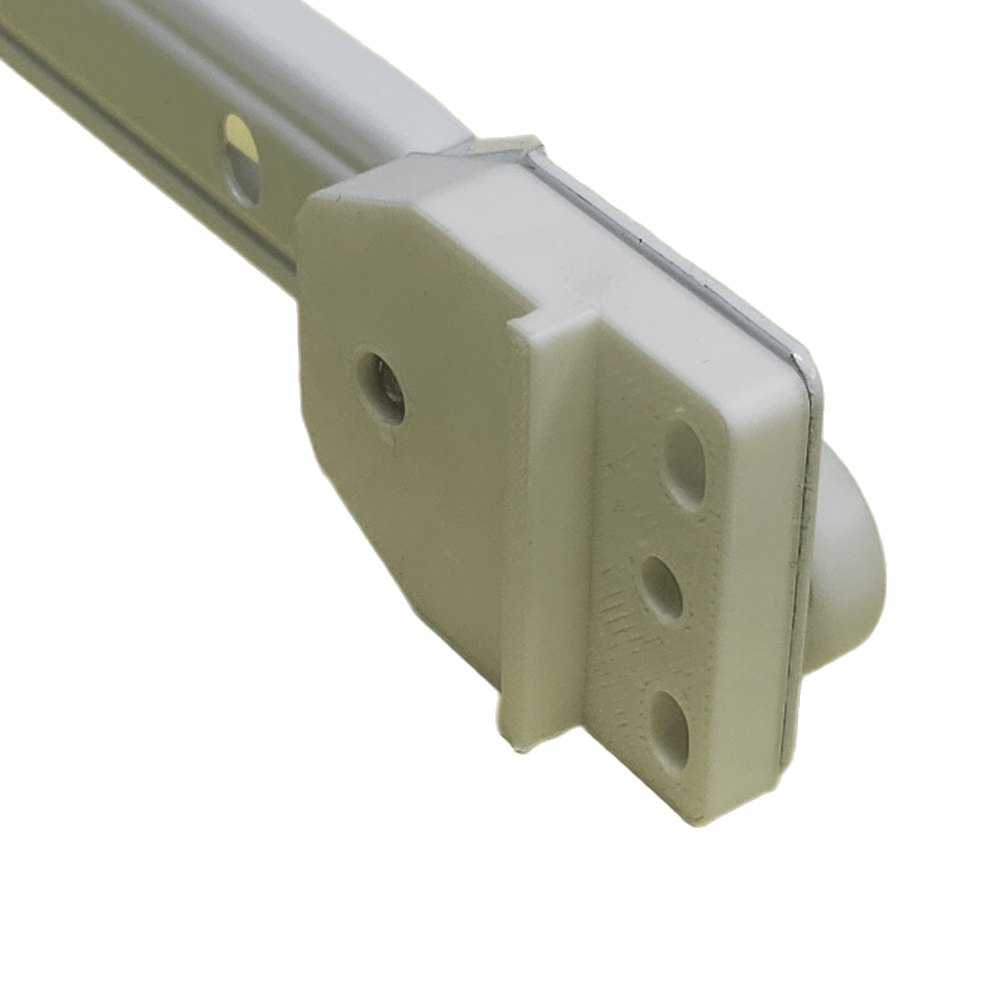

Frame Spacers work with both 3/4 Extensions Slides

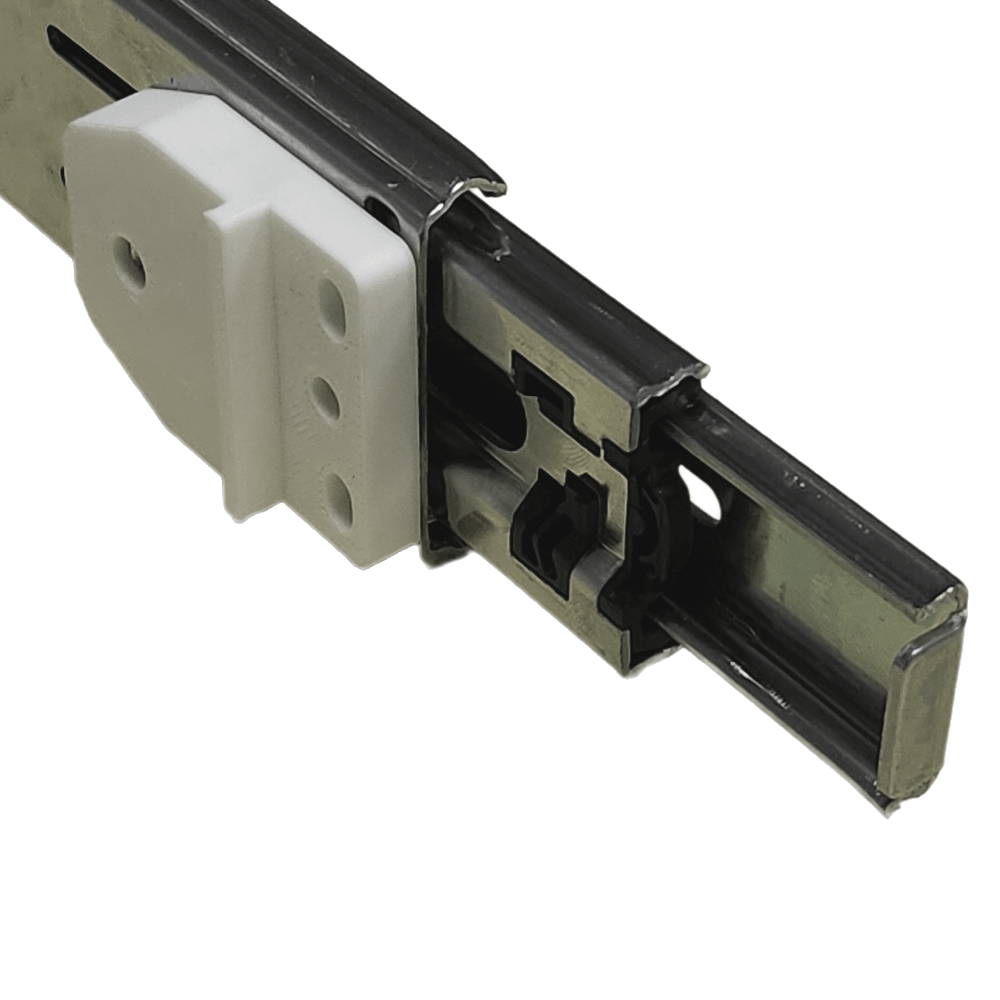

and Ball Bearing Slides.

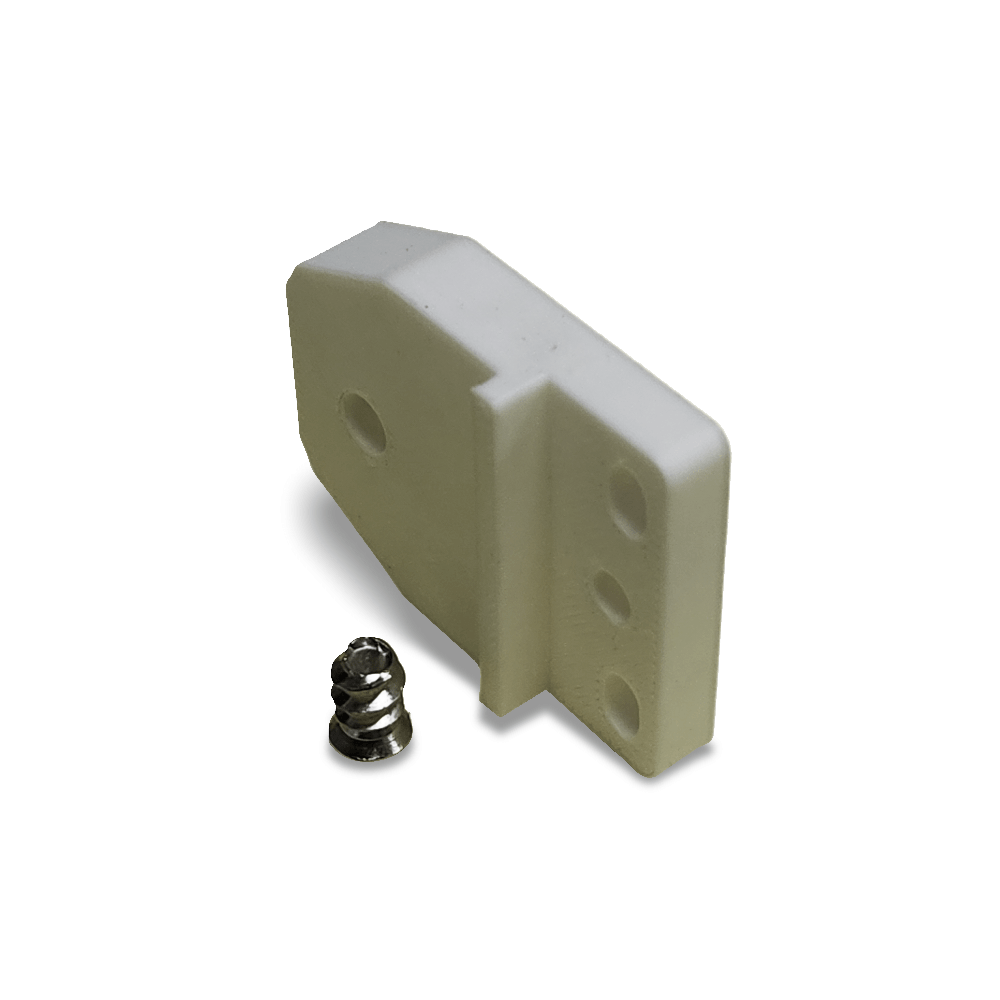

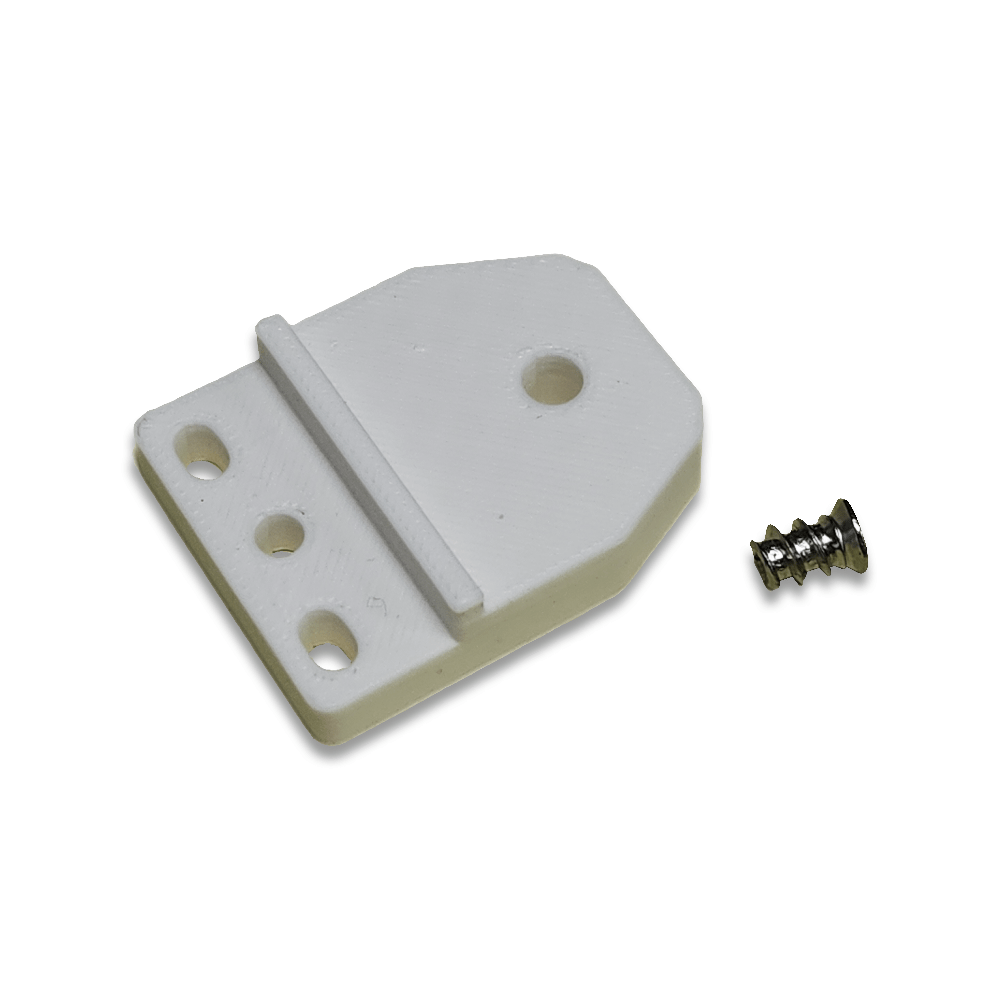

Includes 1 Frame Spacer, and 1 Pozi Screw to attach the Slide to the Spacer directly.
Does not include the screw that would go through the Slide, through the Spacer, and into the Face Frame.
Use your best judgement on screw size.
Note: There may be slight variance in color and minor cosmetic defects due to the nature of these spacers being 3D printed.
Any defects will be purely cosmetic and not alter the structural integrity of the spacer.
